L1 GNSS HAT

A professional-grade GNSS HAT for Raspberry Pi based on the u-blox NEO-M9N module. It provides reliable, standard-precision positioning with concurrent reception of up to four satellite constellations.

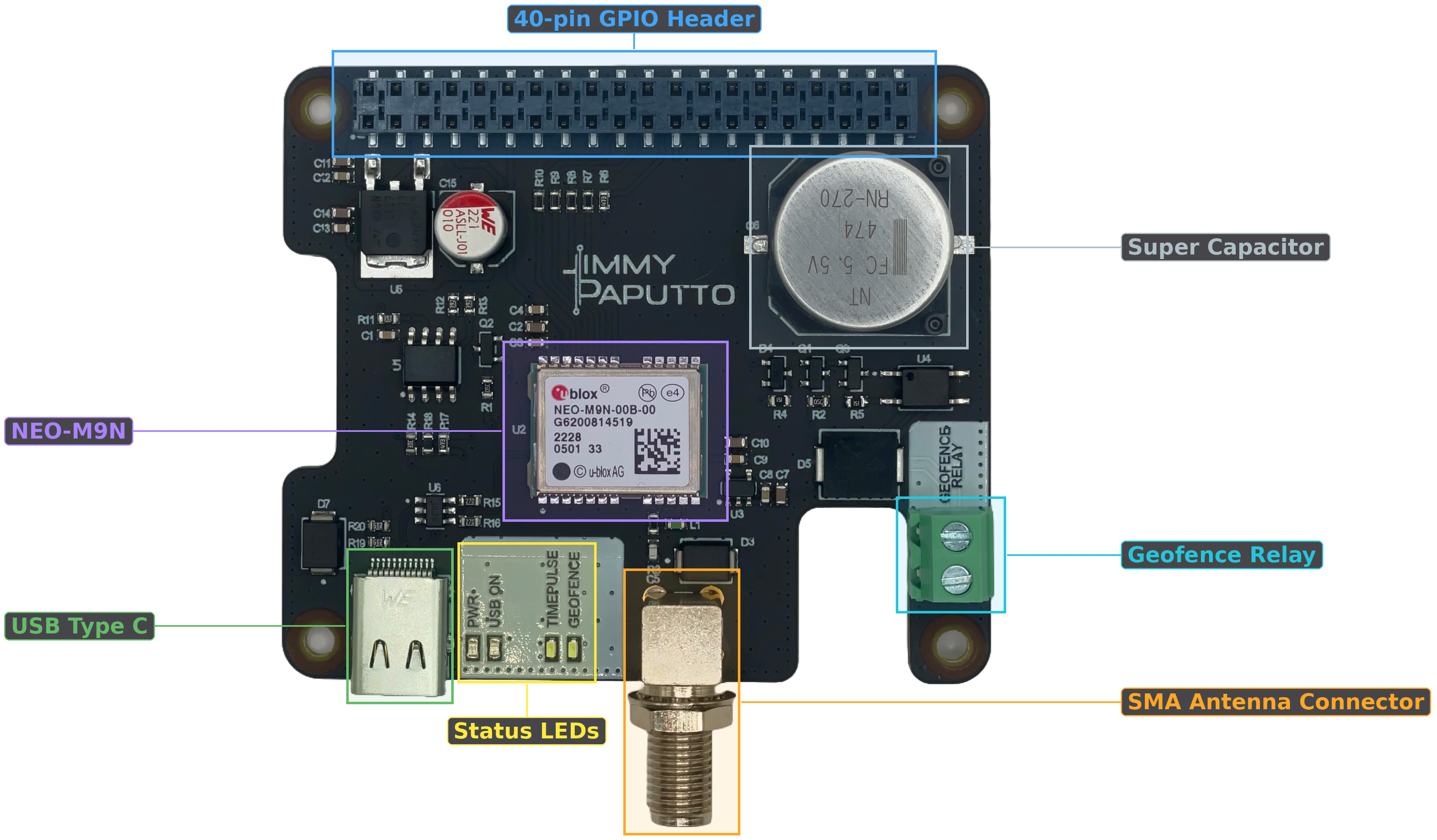

L1 GNSS HAT board

Features

GNSS ModuleNEO-M9N
Frequency BandL1
ConstellationsGPS + QZSS, Galileo, GLONASS, BeiDou (4 concurrent)
Position Accuracy~2.0 m CEP
Max Update Rate25 Hz
GeofencingUp to 4 circular zones + PIO relay output
Hot Start~2 s TTFF via onboard supercapacitor backup
Timepulse (PPS)Configurable pulse on GPIO 5
Jamming / Spoofing DetectionYes
DimensionsRaspberry Pi HAT form factor

Board Components

USB Type-C

The USB-C port provides direct serial access to the gnss module, bypassing the Raspberry Pi entirely. When connected via USB cable, the module appears as a CDC-ACM serial device (/dev/ttyACM0).

Use cases:

  • u-center — connect from a PC to use u-blox’s configuration and evaluation tool for inspecting, configuring, and debugging the receiver if requried
  • Firmware updates — flash new firmware onto gnss module via USB
  • Direct gpsd access — feed NMEA data to gpsd without the library’s SPI bridge
  • Any serial terminal — any tool that accepts serial input can connect directly

Super Capacitor

The onboard supercapacitor provides backup power to the modules’s battery-backed domain (RTC, ephemeris, almanac, and last-known position) when the Raspberry Pi is powered off.

  • Hot start retention: up to 4 hours after power loss
  • Hot start TTFF: ~2 seconds (vs. 30–60 seconds for a cold start)
  • How it works: The supercapacitor charges while the HAT is powered. On power loss, it sustains the backup domain so the receiver remembers satellite data and can reacquire a fix almost instantly when power returns.
Note
To take advantage of hot start, use softResetUbloxSom_HotStart() instead of hardResetUbloxSom_ColdStart() while doing a software reset. A cold start clears all stored satellite data regardless of supercapacitor state.

Status LEDs

The board has several status LEDs located near the USB-C connector:

LEDColorFunction
PWRGreenPower indicator — lit when the HAT is receiving power from the Raspberry Pi
USB ONGreenUSB connection indicator — lit when the HAT is connected by usb cable
TIME PULSEIce BlueTimepulse — blinks at 1 Hz (default) when the receiver has a valid GNSS fix
GEOFENCEIce blueGeofence status — driven by PIO pin 6, lights up based on geofence state, actual logic depends on configuration

The TIME PULSE LED provides an immediate visual confirmation that the receiver has acquired a fix. If the PPS LED is not blinking, the receiver does not yet have a position solution.

40-Pin GPIO Header

The HAT connects to the Raspberry Pi via the standard 40-pin GPIO header. Key pin assignments:

GPIO PinFunctionDescription
GPIO 5Timepulse (PPS)1 PPS output from the module — usable as interrupt or PPS source for time servers
GPIO 17TxReadySPI data-ready interrupt — signals when the receiver has data to transmit
SPI0Data busSPI communication with the module (CE0, MOSI, MISO, SCLK)
EEPROMData busI2C communication with the HAT’s eeprom (SDA, SCL)
Note
GPIO 5 Conflict — Kernel PPS (/dev/pps0) and the library’s enableTimepulse() / timepulse() both use GPIO 5. They cannot run at the same time. Choose one or the other.

Geofence Relay Output

A screw terminal on the board edge provides a relay output. This output is driven by the module’s hardware geofencing engine.

Recommened operating conditions of the onboard relay:

  • Maximum voltage on both pins <= 48V
  • Maximum current <= 325mA
  • Maximum resistance between the terminals in ON-state ~2ohm
